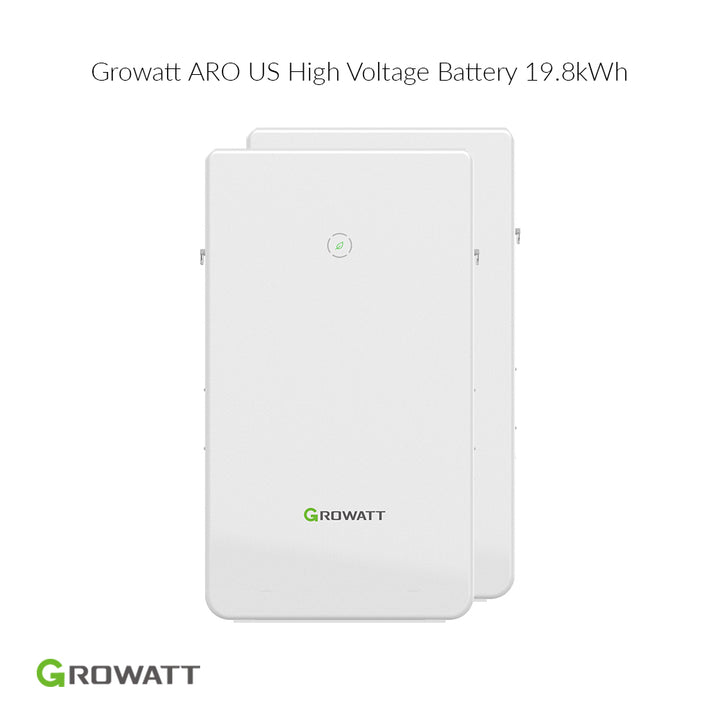

Also designed with installers in mind, the Growatt 19.8 KWh ARO HV LiFePO4 Battery is easy to install and integrate into existing systems. Its compact and modular design makes it easy to handle and install in a variety of locations.
Product Overviews:
Manufacturer: Growatt
Type: LiFePO4 High Voltage
Battery Capacity: 19.8kWh

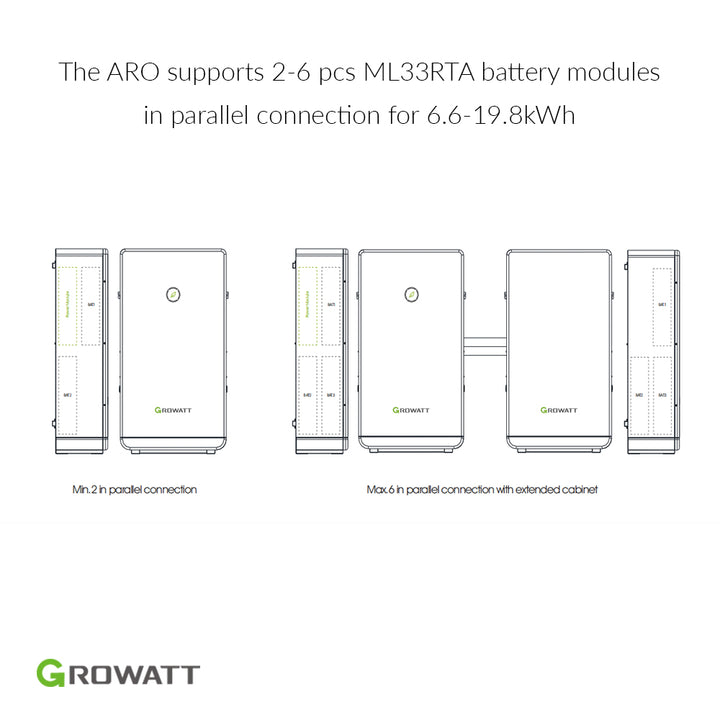

Easy Scalable: Easy scale up to 29.7kWh,39.6kWh
Dimensions(W*D*H): 25.6*12.6*45.7inch (650*320*1160mm)
Weight: 596lbs ( 270 kg )
Installation: Outdoor / Indoor ( Floor stand )
Certificate: UL9540, UL1973
Warranty: 10 Years
Key Features:
-
Easy Installation:
- Easy power output expansion
- Module automatic recognition
- NEMA 4X for outdoor installation
-
Safety and Reliability:
- Cobalt-free LiFePO4 battery
- High cycle stability and long lifespan
- Soft start to defend the system from surges
- Whole system warranty
-
Smart O&M
- Auto under-voltage wakeup
- Remote diagnosis and upgrade
Product Specifications
- Nominal Voltage: 400V
- Operating Voltage: 350~550V
- Max. Charge/Discharge Power: 5.2kW / 5.2kW
- Max. Charge/Discharge Current: 14.3A@360V
- DOD: 90%
- Cycle Life: >6000 cycles
- IP Protection IP56/NEMA Type 4x
- Communication Protocol: RS485, CAN
- Connect style: Parallel
Shipping and Packaging
- The battery can only ship via freight truck
ABOUT GROWATT
Growatt is a leading global manufacturer of solar inverters, energy storage solutions, and smart energy management systems. Founded in 2010, the company has grown rapidly to become a trusted brand in the renewable energy industry, with a presence in over 100 countries and regions around the world.
Growatt's innovative products are designed to maximize energy efficiency and enable customers to reduce their carbon footprint while saving money on energy bills. The company's range of solar inverters includes both string and central inverters, which are suitable for a wide range of applications, from residential rooftops to large-scale commercial and utility-scale projects.
In addition to solar inverters, Growatt also offers a range of energy storage solutions, including lithium-ion batteries and hybrid inverters. These products allow customers to store excess energy generated by their solar panels and use it when needed, further reducing their reliance on grid power.
With a commitment to innovation and customer service, Growatt is dedicated to providing reliable, high-quality products and solutions that meet the evolving needs of the renewable energy industry.
Datasheet
ARO HV Battery System-US Datasheet
Manuals & Guides
ARO-US Quick Guide EN 202103
Certificates
MIN 3-11.4KTL-XH-US and ARO-US UL9540
ARO-US UL1973
Warranty
Growatt Inverter Warranty-10years
