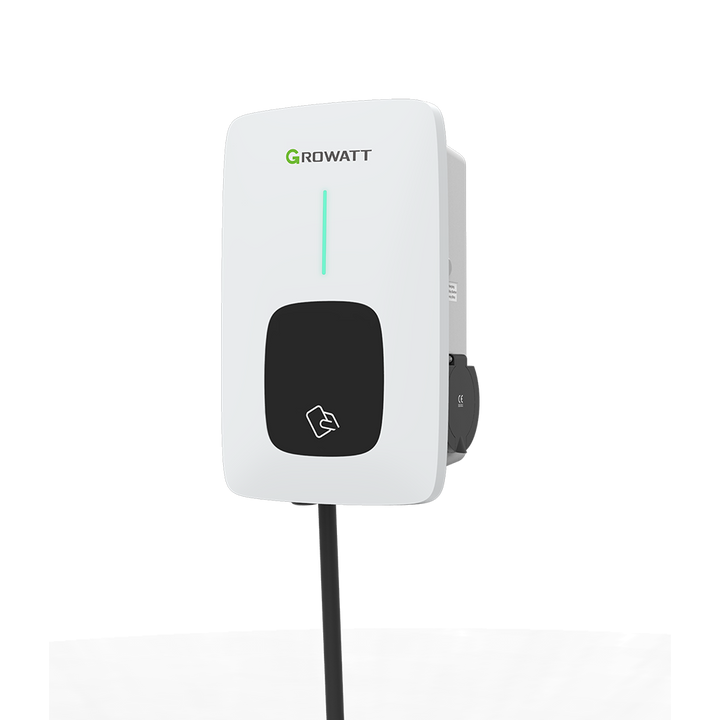

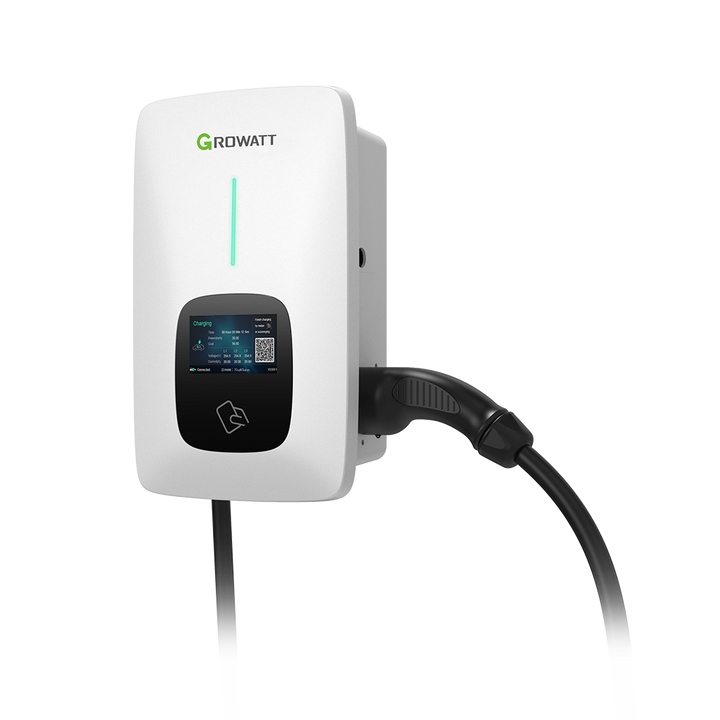

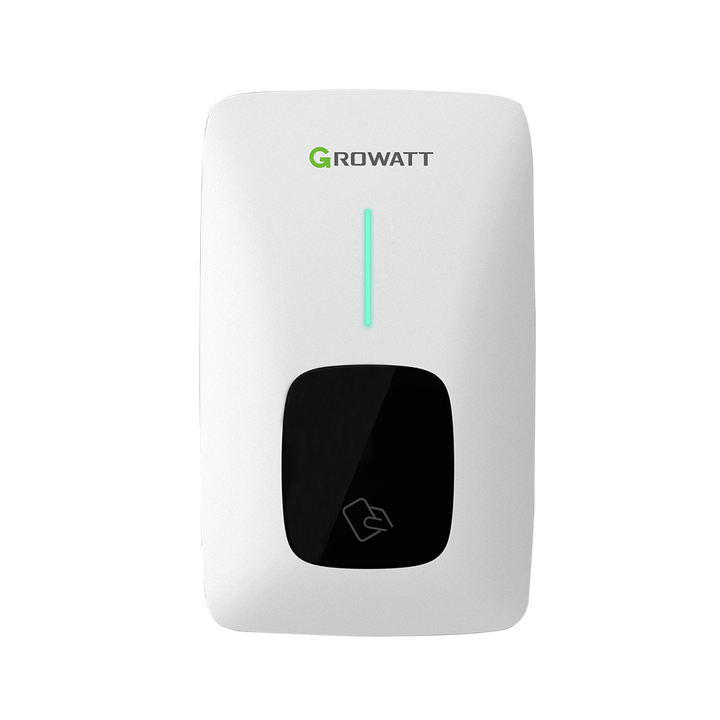

The GROWATT 12kW THOR EV Charger THOR 12AS-P US is a high-quality electric vehicle charging station that is suitable for both residential and commercial use. It offers fast charging speeds and is designed to work with a wide range of electric vehicle models.
The key features of the GROWATT THOR EV Charger THOR 12AS-P US include a sleek and durable design, advanced safety features, and user-friendly controls. equipping with WiFi connectivity, which allows for remote monitoring and control through a mobile app.
Growatt's smart EV charger series can be used in various scenarios including residential and commercial. With the highlighted GroHome system and PV linkage charge mode that is driven by solar, charging your car with 100% renewable energy. The EV will be charged by the surplus solar power dynamically. Combining PV and EV chargers together to maximize the solar self-consumption rate and cut your bill.
Product Overviews:
Manufacturer: Growatt
Type: AC EV Charger
Max. output power: 12kW
Dimensions(W*H*D): 9.68*15*6.O6inches (246*382*154mm)
Weight: 20.9lbs ( 9.5 kg )
Installation: Outdoor / Indoor
Certificate: UL2594, UL2231,UL1998,CSA-C22.2
Warranty: 10 Years
Key Features:
-
Driven by Solar:
- Easily integrated into the solar storage system
- Compatible with all brand EVs
- Charge EVs with renewable energy
-
Smart Management:
- Multiple working modes
- Plug&play, RFID, App charge activation
- Smart load balancing
- Flexible communication by Lan, WiFi, or 4G
-
Safety and Reliability
- Type A RCD + 6mA DC fault current protection
- IP 65 Protection degree
Product Specifications
- Max. output power: 12kW
- Max. output current: 50A
- Input Voltage: 240V
- Charging interface type: Type1
- Connection: Plug
- Cable Length: 23ft (7m )
- IP Protection IP56/NEMA Type 4x
- Multiple work modes: Fast / PV Linkage / Off-peak / Load balancing
- Charge activation: APP / RFID / Plug&Play
ABOUT GROWATT
Growatt is a leading global manufacturer of solar inverters, energy storage solutions, and smart energy management systems. Founded in 2010, the company has grown rapidly to become a trusted brand in the renewable energy industry, with a presence in over 100 countries and regions around the world.
Growatt's innovative products are designed to maximize energy efficiency and enable customers to reduce their carbon footprint while saving money on energy bills. The company's range of solar inverters includes both string and central inverters, which are suitable for a wide range of applications, from residential rooftops to large-scale commercial and utility-scale projects.
In addition to solar inverters, Growatt also offers a range of energy storage solutions, including lithium-ion batteries and hybrid inverters. These products allow customers to store excess energy generated by their solar panels and use it when needed, further reducing their reliance on grid power.
With a commitment to innovation and customer service, Growatt is dedicated to providing reliable, high-quality products and solutions that meet the evolving needs of the renewable energy industry.
