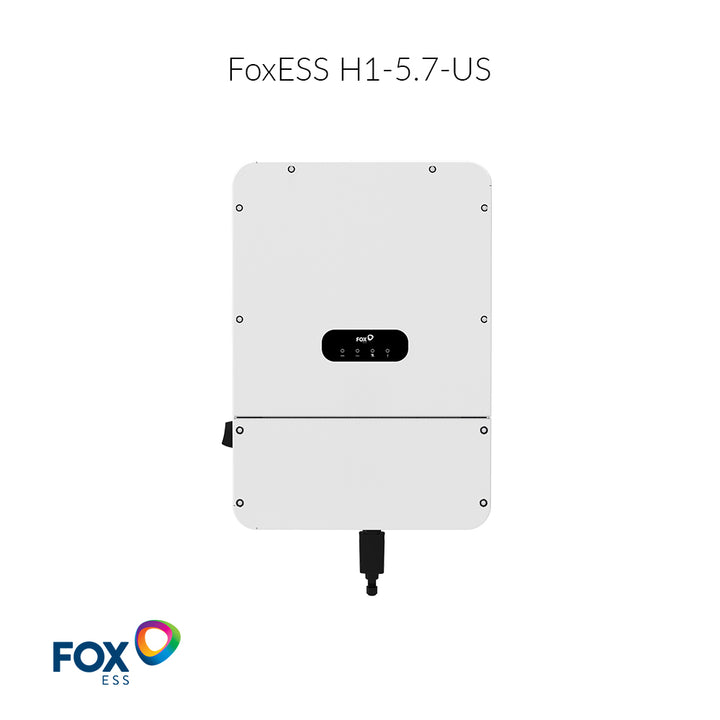

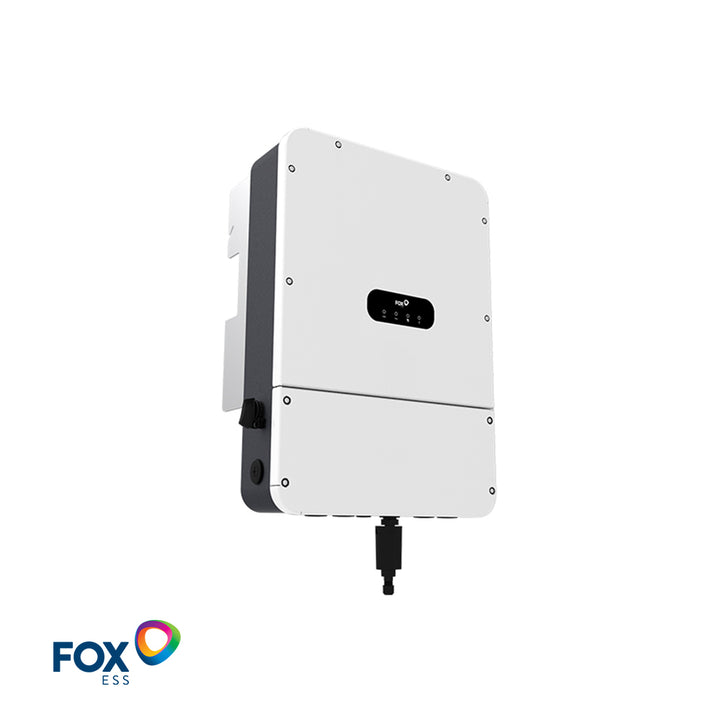

FoxESS H1-5.7-US 5.7kW Split-Phase-Hybrid Inverter | 8.55kW PV Input | FOX Battery 12kWh | All in One Solar Inverter

SKU: WSX-FOXH5700-US

visamasterpaypalamerican expressdiscovershopify paygoogle payapple pay
GET A QUOTE
Description
THE FOX 5.7kW Split-Phase-Hybrid  Pre-Wired Hybrid Inverter System is an all-in-one system that includes an inverter, charger controller, and a display with remote monitoring. The FOX 5.7kW H1-5.7-US  is simple to install to a Grid-tied, Off-Grid, or Battery Storage solar system while being able to manage power to and from Solar, Battery, Grid, Loads, and Generator.

Product Overviews:

Manufacturer FoxESS
Type Split-Phase-Hybrid
AC Power 5.7kW
Max. PV Input Power 8.55kW
MPPT Voltage Range 204~500V
CEC Efficiency 97.0%
Max Efficiency 97.6%
Warranty 10 years
Communications CAN2.0, RS485, SUNSPEC / APP, Website
Certificate UL1741, UL1741SA, UL1998, UL1699B, CAS C22.2


Key Features:

  • Easy Installation: flexible configuration, plug-and-play setup
  • High Voltage: Compatible with high-voltage batteries for maximum round-trip efficiency
  • NEMA 4X: Engineered to last with maximum flexibility, suitable for outdoor installation
  • Remote Monitoring: Monitor your system remotely via the smartphone app or web portal
  • DC and AC Coupling

    Product Specifications:
    PV INPUT

    • Max PV Input Power: 8.55kW
    • Max Input Voltage: 600V
    • MPPT Voltage Range: 80~550V
    • Max Input Current: 28/14A
    • Max Short-circuit Current: 44/22A
    • MPP Trackers: 2
    • Strings per MPP Tracker: 2/1

    Battery Connection

    • Battery Voltage Range: 85~460V
    • Rated Battery Voltage: 360V
    • Max Continuous Charge / Discharge Current: 50A
    • Max Continuous Charge / Discharge Power:
      8.55kW/6.27kW for DC
      5.7kW/6.27kW for AC
    • Max Discharge Current: 60.0A

     AC INPUT AND OUTPUT (GRID)

    • Max AC Input Power: 5.7kW
    • Max AC Input Current: 24A
    • Max Output Current: 23.8A
    • Rated Grid Voltage: 240V

    GENERAL DATA

    • Dimensions(H*W*D): 25.2*17.7*9.6 inch( 640*450*244mm)
    • Weight: 83.3lbs (38kg)
    • Installation: Indoor, Outdoor, Wall-mounted
    • Monitoring Module: WiFi+ LAN, 4G(Optional)

    About FOX ESS

    FOX ESS is a leading provider of advanced energy storage solutions that empower customers to optimize their energy usage, reduce their carbon footprint, and enhance their energy independence. Founded in 2016, 15% of FOX ESS staff are engineers with a core R&D center base in Shang Hai. FOX ESS has developed a wide range of energy storage products and services that cater to the needs of various industries, including residential-use, utilities, commercial and industrial customers. FOX ESS is committed to delivering innovative, reliable, and cost-effective energy storage solutions that meet the evolving needs of the energy market. With a global team of experienced engineers and energy experts, the primary markets of  FOX ESS include Germany, Italy, the UK, Brazil, Poland, and the US.
