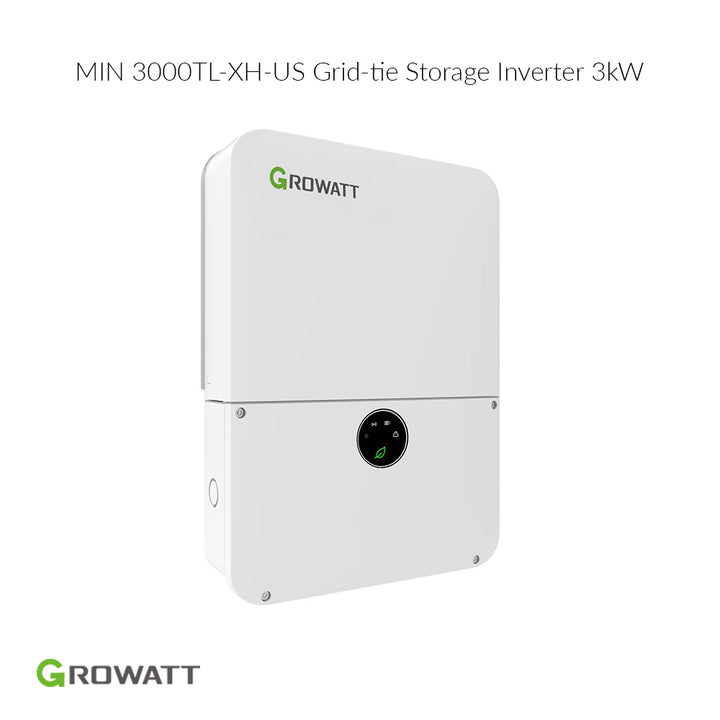

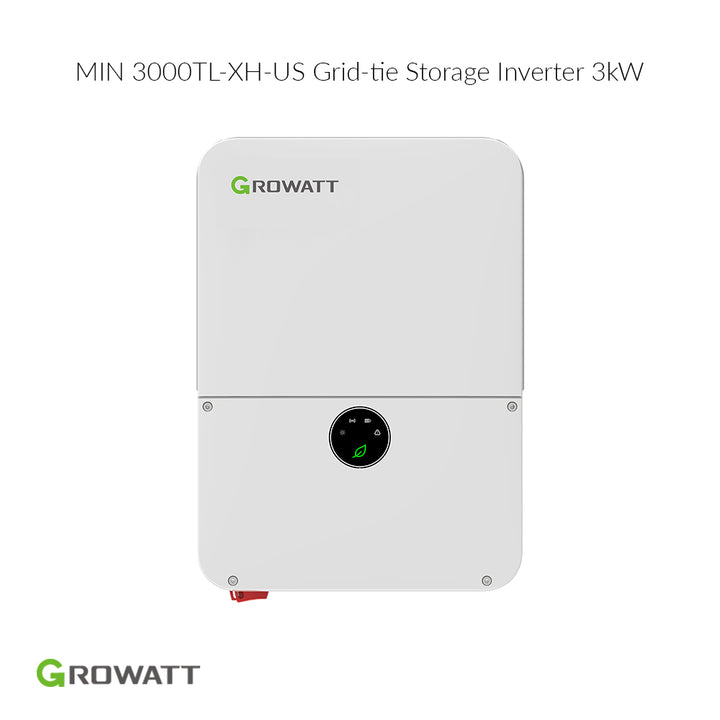

The Growatt MIN 3000TL-XH-US is a cutting-edge Grid-Tie inverter with multi-functional for Grid-Tie and battery storage systems. This model was designed specifically for residential energy storage systems, it also can support off-grid and solar systems when paired with Growatt ATS(Auto Transfer Switch).
The WiFi module is a plug-and-play monitoring device able to be connected directly to your inverter, allowing you to monitor the status of your power system online via your mobile phone or Website portal.
Product Overviews:
| Manufacturer | Growatt |
| Type | Grid-Tie / Battery Ready |
| AC Power | 3kW |
| Max PV Input Power | 6kW |
| MPP Trackers | 2 |
| MPPT Voltage Range | 130~500V |
| Max Efficiency | 98% |
| Compatible Battery | Growatt ARO HV Battery / LG Prime(Gen3) Battery |
| Warranty | 10 Years |
| Communications | CAN2.0, RS485, SUNSPEC / APP, Website |
| Certificate | UL1741, UL1741SA, UL1998, UL1699B, CAS C22.2, CA Rule21, UL9540 |
Key Features:
-
Leading Functions:
- Whole home backup
- Dark start operation
- Support RSD, AFCI, and RGM meter
-
High Yields:
- DC/AC Ratio up to 2.0
- Max. efficiency 98%
-
System Compatibility
- DC Coupled and AC Coupled systems
- Self-consumption, Zero Export, TOU, and Off-Grid
- UL1741SA/SB, CA Rule 21 & HECO
Product Specifications:
PV INPUT
- Max PV Input Power:6 kW
- Max Input Voltage: 600V
- Full load Voltage Range: 130~500V
- Max Input Current per MPTT: 13.5A
- Max Short-circuit Current per MPTT: 16.9A
- MPP Trackers: 2
- Strings per MPP Tracker: 2
Battery Connection
- Battery Voltage Range: 360~550V
- Rated Battery Voltage: 400V
- I/O DC Current: 9A/9A
- I/O DC Power: 3.2kw
AC OUTPUT (GRID)
- Nominal Power: 3.0kW
- Max Output Current: 12.5A
- Nominal AC Voltage: 208/240V
GENERAL DATA
- Dimensions(H*W*D): 15.75*22.4*6.98 inch( 400*569*170.5mm)
- Weight: 32.3lbs (14.65kg)
- Installation: Indoor, Outdoor, Wall-mounted
- Monitoring Module: WiFi+ LAN, 4G(Optional)
