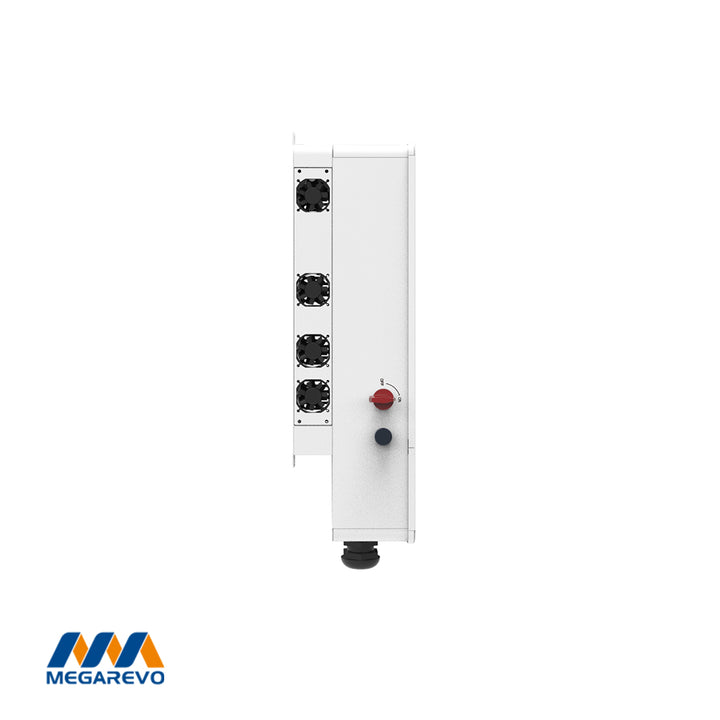

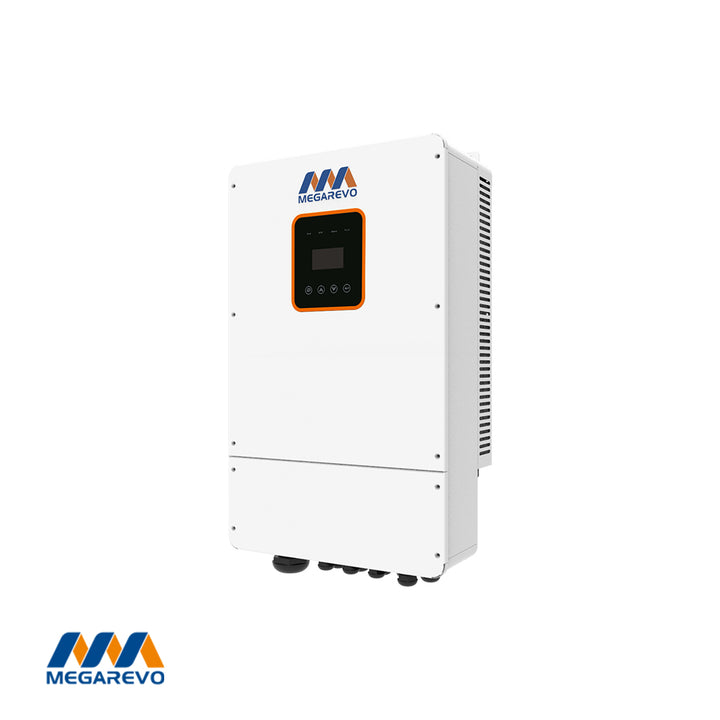

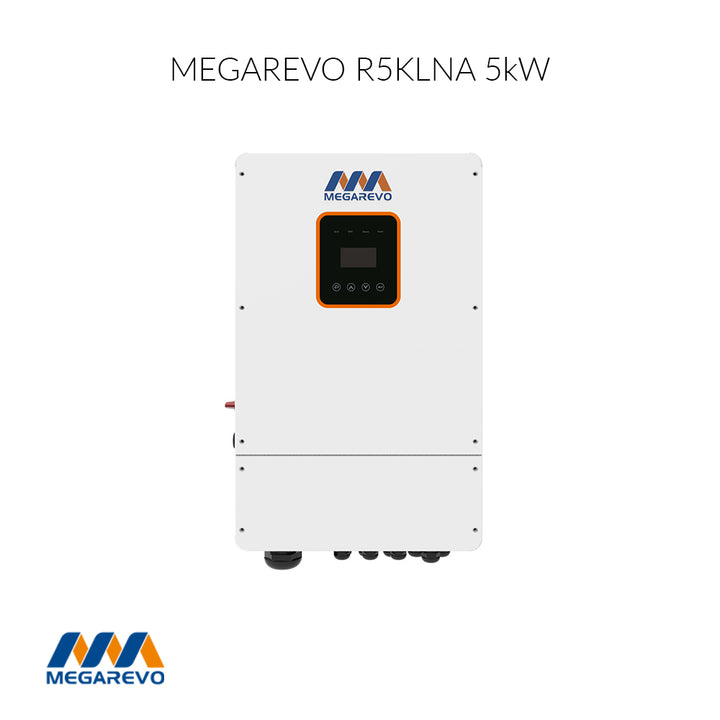

Megarevo R5KLNA 5kW Split Phase Hybrid Inverter | 5kW Output | 7.5kW PV Input | Compatible 48V Low Voltage Battery | All in One Solar Inverter

SKU: WSX-R5KLAN-US

visamasterpaypalamerican expressdiscovershopify paygoogle payapple pay
GET A QUOTE
Description

The Megarevo R5KLNA 5kW Split Phase Hybrid Inverter is designed to use in both Grid-Tie and Off-Grid solar systems. With a 5kW rated output and 7.5kW maximum PV input, it perfectly supports 48V low-voltage battery storage systems. The Hybrid feature makes it suitable for Gird-Tie and Off-Grid systems without charge controllers and transformers, so it's convenient to install.

Product Overviews:

Manufacturer MEGAREVO
Type Grid-Tie / Off-Grid All-in-One storage solar inverter
AC Power 5.0kW
MPP Trackers 4
Max Efficiency 97.2%
Compatible Battery Pytes / Pylontech / Dyness 48V Battery
Weight 90.4lbs ( 41kg )
Dimensions(W*D*H) 16.9 *8.7*27.9 inches ( 430*220*710mm )
Warranty 10 years
Certificate UL1741SA All options, UL1699B, CAS C22.2, CA Rule21



Key Features:

  • Economical & efficient
    - Support parallel SOC equalization control
       and parallel current sharing control
    - Using split-phase topology and eliminating the transformers,
       making the system efficiency higher
    - Support the diesel generator and the grid access at the same time.

  • Flexible
    - Support muti-machine parallel connection;
    - Support multi-machine parallel mode sharing a battery pack;

  • Safe & Reliable
    - Passed UL 1741:2021, IEEE 1547.1, UL1699B,
       South Africa NRS097-2-1:2017 test certification

Product Specifications:
PV INPUT

  • Max PV Input Power:7.5 kW
  • Max DC Voltage: 500V
  • MPPT Voltage Range: 120~500V
  • Max Input Current per MPTT: 12A
  • Max Short-circuit Current per MPTT: 16.9A
  • MPPT Tracker / strings: 4 / 1

Battery Connection

  • Battery Voltage Range: 40~58V
  • Max. Charging Voltage: 58V
  • Max. Charge/Discharge Current: 120/120A

 AC  OUTPUT (GRID)

  • Rated Output Power: 5kW
  • Max Output Current: 24A
  • AC Output Voltage:  120/240(split phase), 208(2/3 phase), 230(single phase)

GENERAL DATA

  • Ingress Protection: IP65 / NEMA 3R
  • Installation: Indoor, Outdoor, Wall-mounted
  • Monitoring Module: RS485/ WiFi / 4G / CAN

ABOUT MEGAREVO

Megarevo Technology is an industry-leading enterprise specializing in energy storage inverters and systems headquartered in Shenzhen. The company brings together a team of top technical talents and power electronics experts and focuses on four key application areas: residential energy storage, C&I energy storage, microgrid, and renewable energy power stations. With a vision of making energy more efficient and clean, Megarevo offers standard energy storage products and customized solutions.

MEGAREVO product lineup includes the MEGA and REVO series converters, MPS microgrid products, and RESS series system solutions. These products have obtained international certifications such as CGC, CE, TUV, CSA, UL, G99, NRS, and SAA.

Downloads

Datasheet
48V American ESS split- phase inverter Datasheet

User Manual & Guide
LNA series hybrid inverter user manual

Certificate
R5-10KLNA UL1741 certificate
