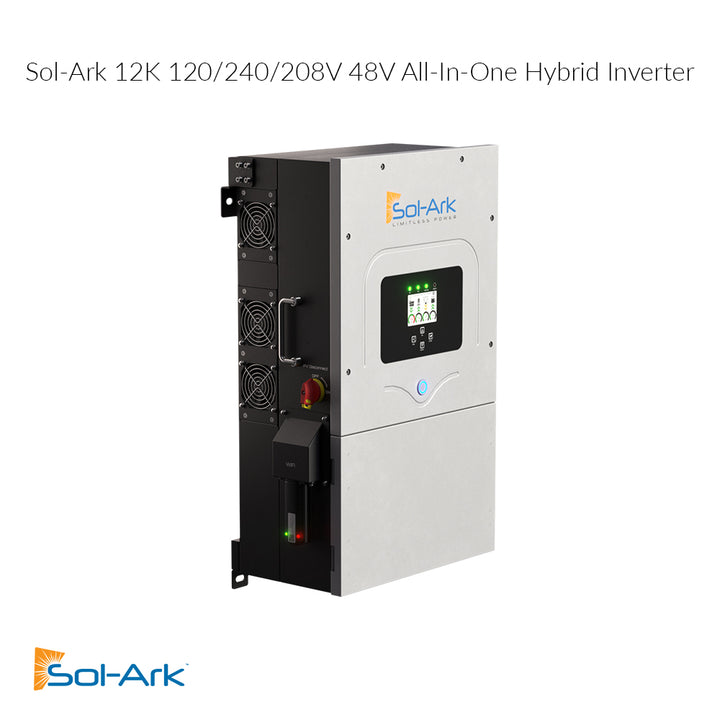

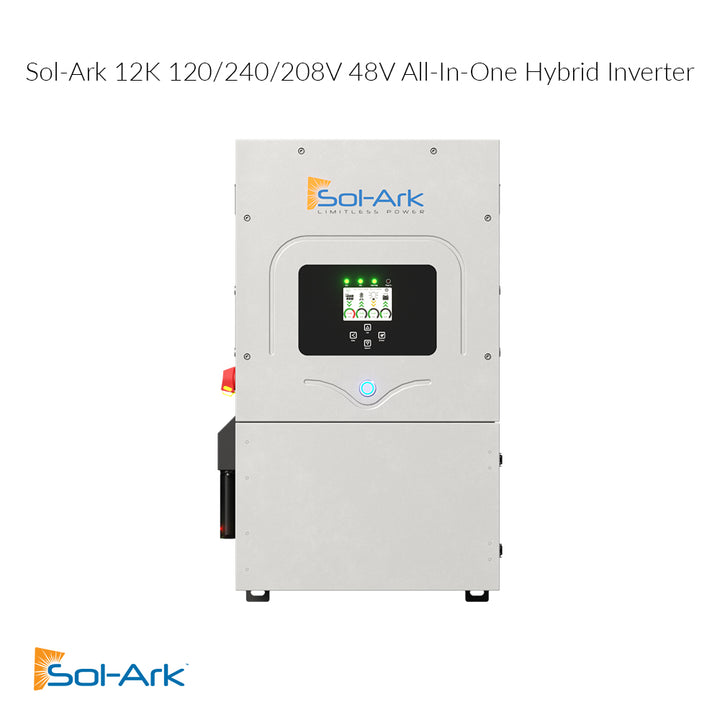

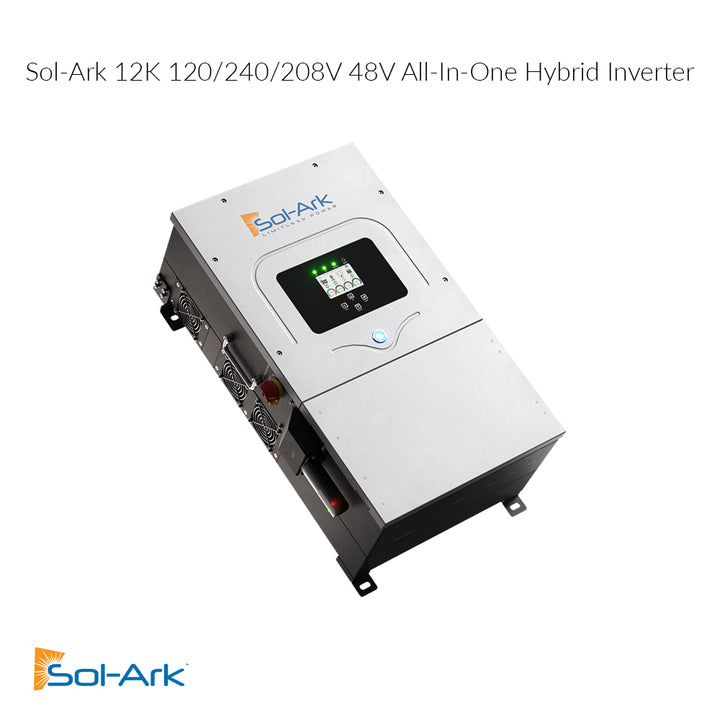

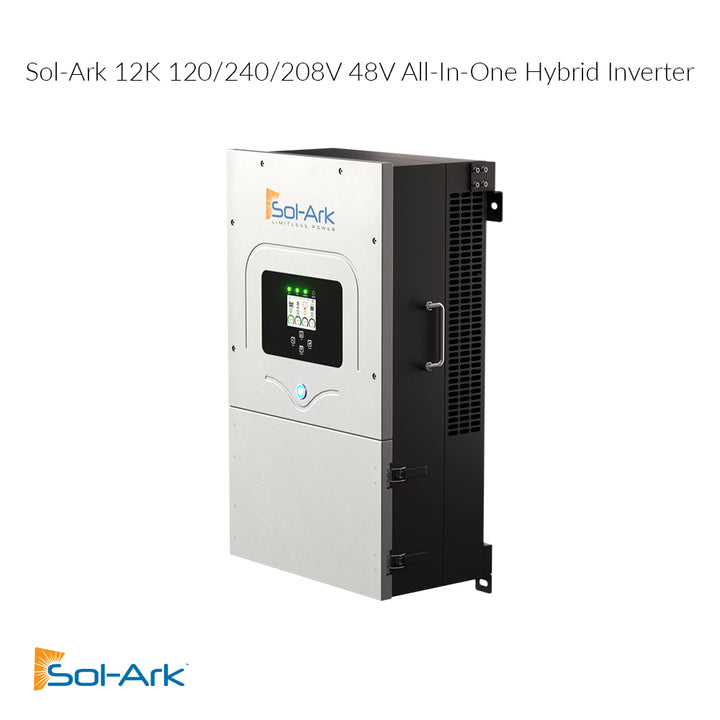

SOL-ARK 12K-2P 120/240/208V 48V Pre-Wired All-in-One Hybrid Solar Inverter | 10-Year Warranty

SKU: S-SOLARK-12K

visamasterpaypalamerican expressdiscovershopify paygoogle payapple pay
GET A QUOTE
Description

Sol-Ark 12K-2P Pre-Wired All-In-One Hybrid Inverter System is an all-in-one system that has everything you need built-in. With a charger controller, a display with remote monitoring, and many other built-in features. This inverter is flexible, efficient, and simple to install to a Grid-tied, Off-Grid, or battery backup solar system while being able to manage power to and from Solar, Battery, Grid, Loads, and Generator. It's a great choice to simplify your installation.

Product Overviews:

Manufacturer Sol-Ark
Type Grid-Tie / Off-Grid All-in-One storage solar inverter
AC Power 12.0kW
MPP Trackers/Strings 2/2
CEC Efficiency 96.5% ( Peak 97.5% )
Compatible Battery Pytes / Pylontech
Dimensions(H*W*D) 30.0” x 18.3” x 10.0”
Weight 78lbs / 35.4kg
Warranty 10 years
Certificate UL1741-2010/2018, IEE-E1547a-2003/2014, UL1741SA, UL9540 with Pytes, Pylontech



Key Features:

  • Simple to install:
    all-in-one and with a touchscreen and friendly interface

  • Grid-Tie mode:
    sell your power back to the grid, low your electricity bill

  • Time of use:
    use the battery system to minimize your grid power usage

  • Meter Zero Mode:
    Smart meter included Zero on your electricity bill

  • Fleet management:
    Quickly repair or adjust any system without being on site

  • Battery Agnostic:
    With a wide variety of 48V batteries ( lead or Lithium )

  • DC and AC Coupling

Product Specifications:
PV INPUT

  • Max PV Input Power:13000W
  • Max DC Voltage: 500V
  • MPPT Voltage Range: 175~425V
  • Max Input Current per MPTT: 20A
  • MPPT Tracker / strings: 2 / 2
  • Max. AC Couple Input: 9600W

Battery Connection

  • Nominal DC Voltage: 48V
  • Operating Voltage Range 43~63V
  • Grid to Battery Charging Efficiency 96.0%
  • Max. Charge/Discharge Current: 185/185A

 AC  OUTPUT (GRID)

  • Real Power, max continuous:  9000W
  • Max Output Current: 37.5A
  • Connections :  120V / 240V,120 / 208V, 220V Split Phase

GENERAL DATA

  • Ingress Protection: IP65 / NEMA 3R
  • Installation: Indoor, Outdoor, Wall-mounted
  • Monitoring Module: RS485/ WiFi / 4G / CAN

ABOUT Sol-Ark
Sol-Ark is a cutting-edge renewable energy solution company that has revolutionized the way we harness and store solar power. Established with a vision to address the world's energy challenges, Sol-Ark has become a leading player in the renewable energy industry. Through their innovative solar inverters and energy storage systems, they have been instrumental in transforming traditional power grids into resilient and sustainable energy networks. Sol-Ark mission is to continue making the most reliable, innovative, and affordable solar storage solutions to protect families and their businesses.
