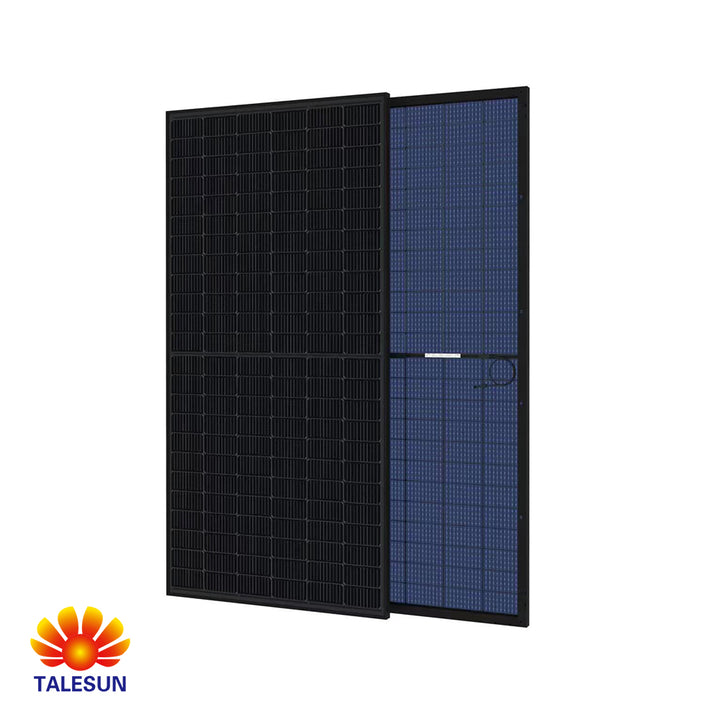

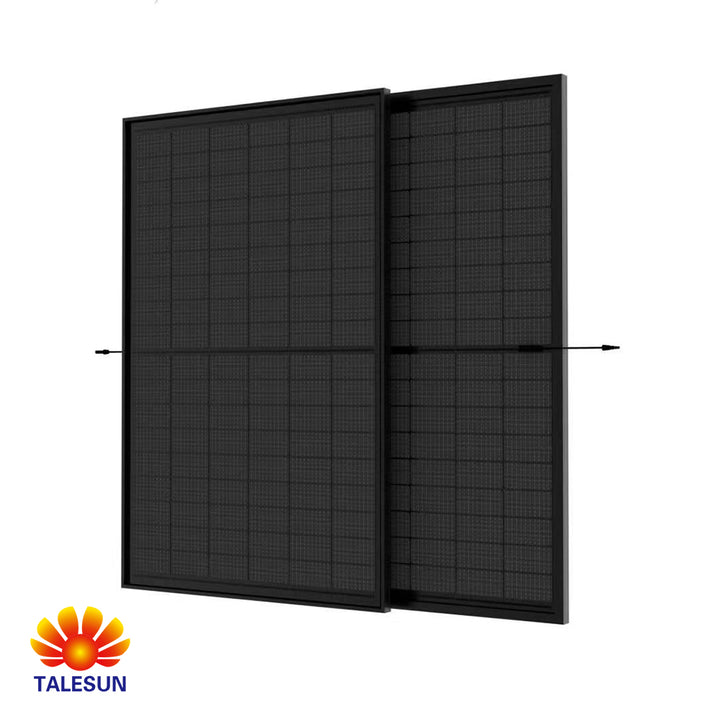

The TALESUN TP7G54M is a high-quality bifacial solar module with a maximum power output of 405 watts that delivers exceptional performance and durability for residential solar systems. Full-black aesthetic appearance with a transparent black sheet, and 1200mm cable length, MC4 connector. With exceptional performance, durability, and reliability, it is extremely suitable for distributed projects.
Product Overview
Maximum Power: 405Watts
Technology: Half-cut Mono Perc
Efficiency: 20.7%
Dimensions: 67.80" x 44.65" x 1.18 inches(1722*1134*30mm)
Weight: 47.4 lbs (21.5kg)
Frame: Anodized Aluminum Alloy
Warranty: 12 years for product, 25 years for performance
Certificates: UL 61730 / IEC61216 / IEC 61730
Product Key Features
- 10BB Half-cut Cell Technology, Excellent cells efficiency
- Significantly lower the risk of hot spot
- Excellent Anti-PID Performance
- Full black and superior aesthetics
- IP68 Junction Box, High waterproof level
Product Specifications
- Maximum Power: 405 W
- Operating Voltage: 31.24V
- Operating Current: 12.97A
- Open Circuit Voltage: 37.25V
- Short Circuit Current: 13.86A
- Maximum System Voltage: 1000/1500V /DC
- Maximum Series Fuse Rating: 30A
- Front Side Maximum Static Loading: 5400Pa
- Rear Side Maximum Static Loading: 2400Pa
- Junction Box: IP68, 3 Bypass diodes
- Connectors: MC4/MC4-EV02/T01/LJQ-3-CSY
- Cables: 1200mm(With Connectors) or Customized Length
Shipping and Packaging
- 36pcs per pallet
- 828pcs per 40'HC
About TALESUN
Talesun is a leading global manufacturer of solar photovoltaic (PV) modules and solutions. Founded in 2010, the company has established itself as a reliable and innovative provider of high-quality solar products and services. The company's products are widely used in a variety of applications, including residential, commercial, and utility-scale solar projects.
Headquartered in China, Talesun has a global network of subsidiaries and partners that enables it to provide comprehensive support and services to customers around the world.
Datasheet : TALESUN BISTAR TP7G54M 405W Datasheet
