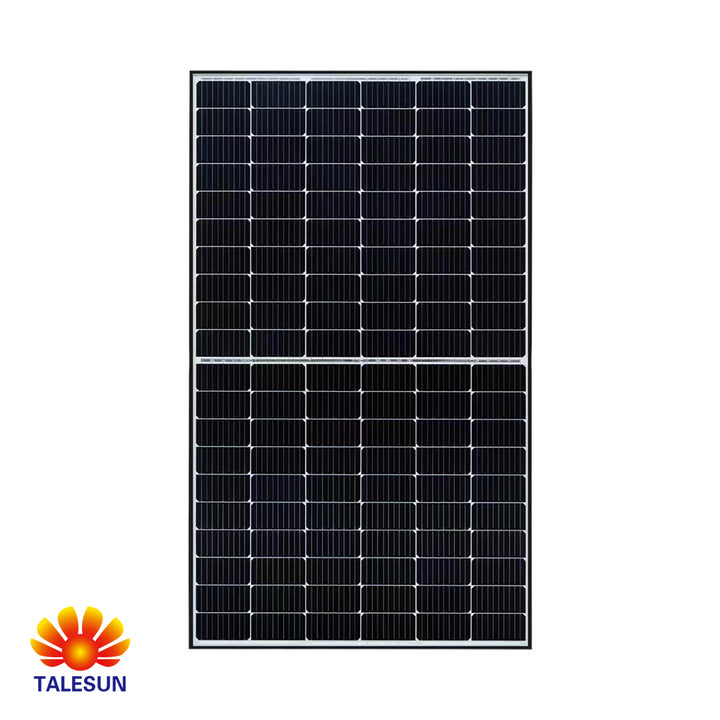

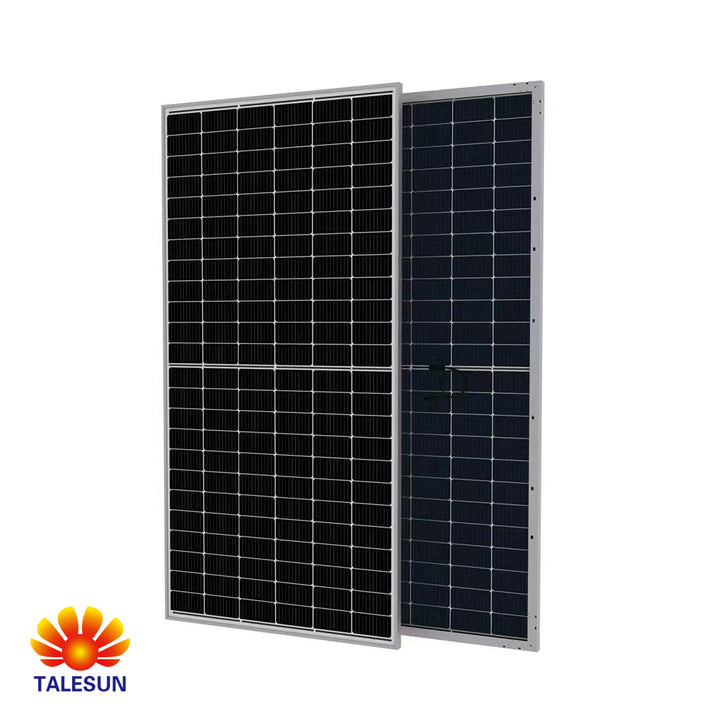

The TALESUN TD7G72M is a high-quality bifacial dual glass solar module with a maximum power output of 545 watts that delivers exceptional performance and durability for commercial solar systems. Based on bifacial PERC cell technology, it has an industry-leading high yield. With 1200 / 2500mm cable length, MC4 connector, exceptional performance, durability, and reliability, it can be widely used in high-humid, windy, and dusty areas.
Product Overview
Maximum Power: 545 Watts
Technology: Half-cut Bifacial Mono Perc
Efficiency: 21.10%
Dimensions: 89.69" x 44.65" x 1.38 inches(2278*1134*35mm)
Weight: 71.0 lbs (32.2kg)
Frame: Anodized Aluminum Alloy
Warranty: 12 years for product, 25 years for performance
Certificates: UL 61730 / IEC61215 / IEC 61730
Product Key Features
- 10BB Half-cut Cell Technology, Excellent cells efficiency
- Industry Leading high yield, bifacial PERC cell technology
- Significantly lower the risk of hot spot
- Excellent Anti-PID Performance
- Wider Applications can be widely used in high-humid, windy, and dusty area
- IP68 Junction Box, High waterproof level
Product Specifications
- Maximum Power: 545 Watts
- Operating Voltage: 41.8V
- Operating Current: 13.04A
- Open Circuit Voltage: 49.76V
- Short Circuit Current: 13.93A
- Maximum System Voltage: 1500V /DC
- Maximum Series Fuse Rating: 30A
- Front Side Maximum Static Loading: 5400Pa
- Rear Side Maximum Static Loading: 2400Pa
- Junction Box: IP68, 3 Bypass diodes
- Connectors: MC4/MC4-EV02/T01/LJQ-3-CSY
- Cables: 1200mm(With Connectors) or Customized Length
Shipping and Packaging
- 31pcs per pallet
- 558pcs per 40'HQ
About TALESUN
Talesun is a leading global manufacturer of solar photovoltaic (PV) modules and solutions. Founded in 2010, the company has established itself as a reliable and innovative provider of high-quality solar products and services. The company's products are widely used in a variety of applications, including residential, commercial, and utility-scale solar projects.
Headquartered in China, Talesun has a global network of subsidiaries and partners that enables it to provide comprehensive support and services to customers around the world.
Datasheet : TALESUN BIPRO TD7G72M 545W Datasheet
