Description

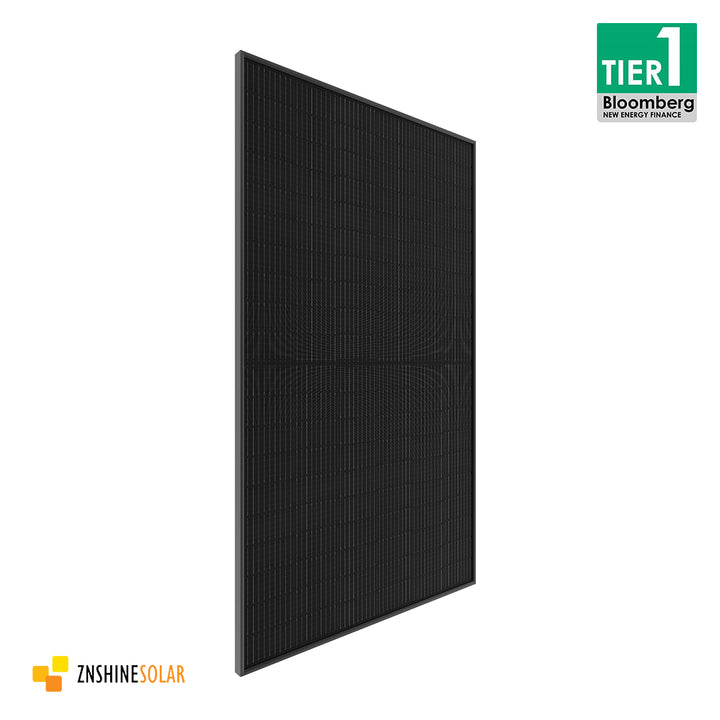

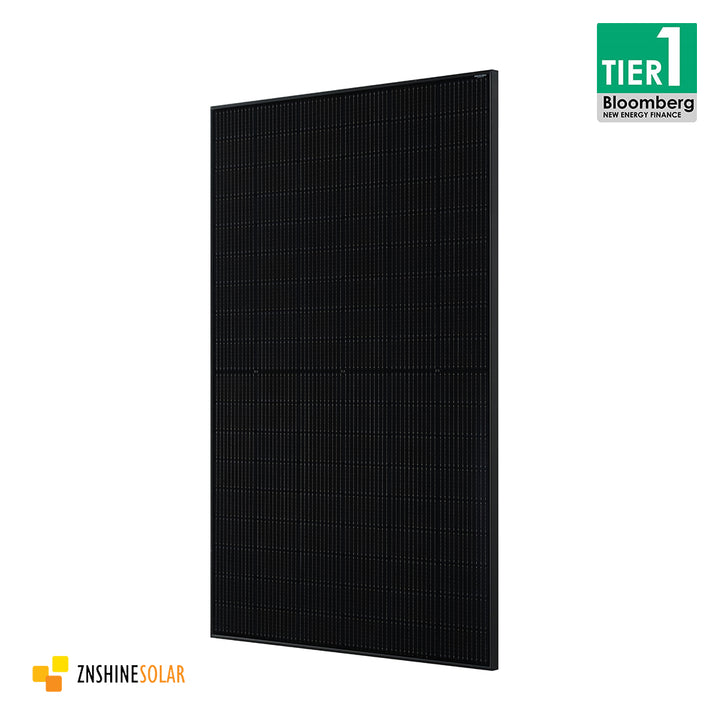

ZNSHINE SOLAR ZXM6-NH120 370W is a full-black high-performance solar panel manufactured by ZNSHINE SOLAR with a peak power output of 370 watts, making it suitable for residential solar systems and all kinds of distributed solar projects.
Product Overviews
- Power range: 370 watts
- Technology: 9BB Half-cell black monocrystalline PERC
- Cells: 120
- Efficiency: 20.31%
- Dimensions: 69.09*40.87*1.38inches(1755*1038*35mm)
- Weight: 47.4 lbs(20.5kg)
- Frame color: Black
- 12 years product warranty
- 25 years performance warranty
Product Highlight
- Excellent cells efficiency
- Better weak illumination response
- Anti-PID
- Adapt to the harsh outdoor environment
- Full black and superior aesthetics
- Tier1 brand and excellent quality management system
Product Features
- Maximum Power: 370 W
- Max Power Voltage: 34.20V
- Max Power Current: 10.74A
- Open Circuit Voltage: 41.0V
- Short Circuit Current: 11.42A
- Maximum System Voltage: DC1500V (UL)
- Maximum Series Fuse Rating: 20A
- Front Side Maximum Static Loading: 5400Pa
- Rear Side Maximum Static Loading: 2400Pa
- Junction Box: IP68, 3 diodes
- Connectors: MC4-compatible / XT-101.1
- Cables: 4mm,1200 / 1800mm(With Connectors), or Customized Length
Shipping and Packaging
- 31pcs per pallet
- 871pcs per 40'HC
About ZNSHINE SOLAR
ZNSHINE SOLAR is a TIER 1 and global leader in the manufacture and supply of high-quality solar photovoltaic (PV) modules and solutions. With a commitment to sustainability and a focus on innovation, ZNSHINE SOLAR offers reliable and cost-effective solar solutions for residential, commercial, and utility-scale projects worldwide.
