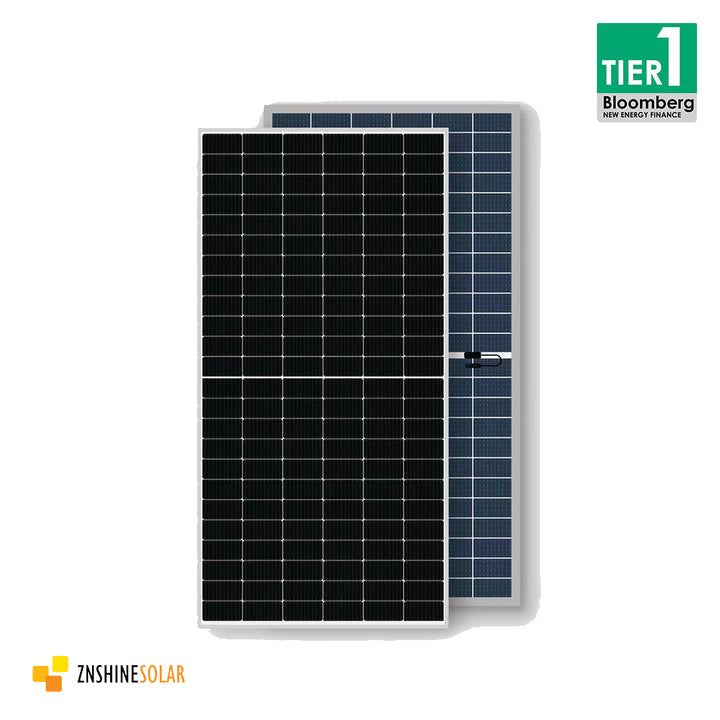

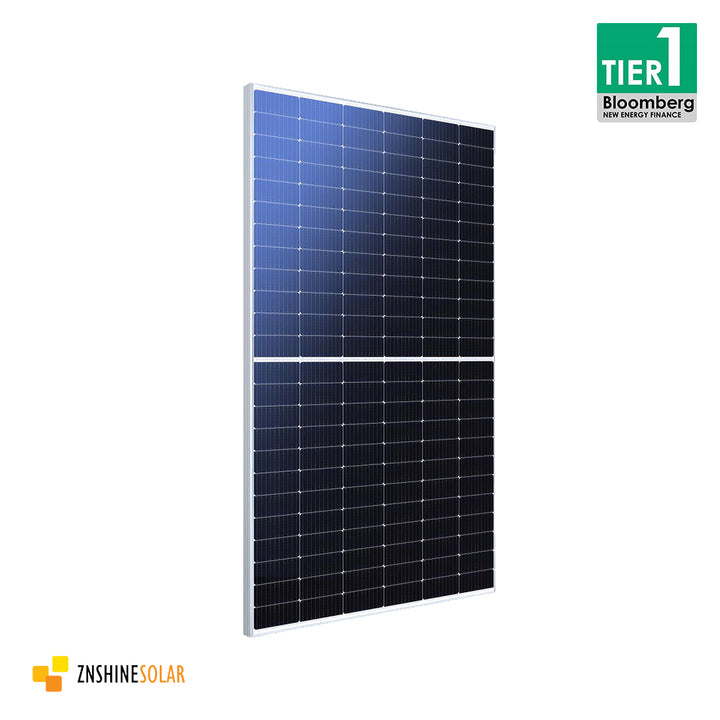

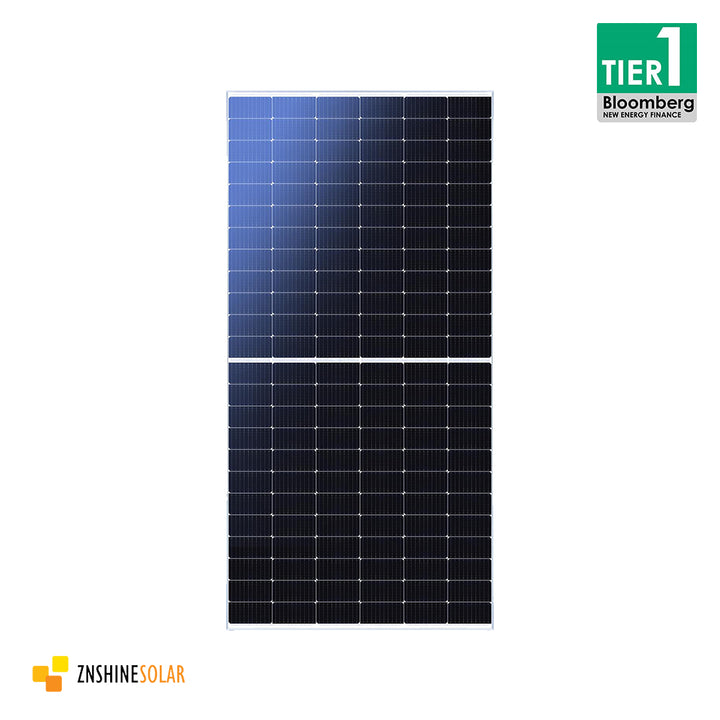

ZNSHINE SOLAR ZXM7-SHLDD144 550W Bifacial Double Glass Mono Perc Solar Panel

ZNSHINE SOLAR ZXM7-SH108 series is a high-performance solar panel manufactured by ZNSHINE SOLAR. The ZXM7-SH108 series panel has a peak power output of 550 watts, making it suitable for residential, commercial, and utility-scale solar installations.

Product Overviews

• Maximum Power:  550 watts
• Technology: 10BB Half-cell black monocrystalline PERC
• Cells: 108
• Efficiency: 21.28%
• Dimensions: 89.68×44.65×1.18 inches(2278*1134*30mm)
• Weight: 70.55lbs(32.0kg)
• Frame color: Black
• 12 years product warranty, 30 years performance warranty
• Certificate: UL61730 / IEC61215 / IEC 61730 / IEC61701 / IEC62716

Product Key Features

• Excellent cells efficiency
• Better weak illumination response
• Anti-PID
• Adapt to the harsh outdoor environment
• Full black and superior aesthetics
• Tier1 brand and excellent quality management system

• Bifacial Technology: up to 25% additional power gain
  from the back side depending on albedo

Product Specifications

• Maximum Power: 550 W

• Maximum Power Voltage: 41.90V

• Max Power Current: 13.13A
• Open Circuit Voltage: 50.2V
• Short Circuit Current: 13.89A
• Maximum System Voltage: DC1500V (UL)
• Maximum Series Fuse Rating: 30A

• Front Side Maximum Static Loading: 5400Pa
• Rear Side Maximum Static Loading: 2400Pa
• Junction Box: IP68, 3 diodes
• Connectors: MC4-compatible
• Cables: 4mm,350mm(With Connectors) or Customized Length

Shipping and Packaging

• 36pcs per pallet
• 936pcs per 40'HC


About ZNSHINE SOLAR
ZNSHINE SOLAR is a TIER 1 and global leader in the manufacture and supply of high-quality solar photovoltaic (PV) modules and solutions. With a commitment to sustainability and a focus on innovation, ZNSHINE SOLAR offers reliable and cost-effective solar solutions for residential, commercial, and utility-scale projects worldwide.

Datasheet :   ZXM7-SHLDD144 550W Datasheet
